Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box

  • Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box
  • Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box
  • Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box
  • Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box
  • Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box
  • Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box
Place of Origin Guangdong, China
Nom de marque SHANGWEN
Numéro de modèle Le numéro de série est le suivant:
Prix CN¥5,072.48-6,521.76/pieces

Contactez-moi pour des aperçus gratuits et des bons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Application Power, Electric Power System Number of Sockets 12
Courant nominal 16A Lighting electronics accessories
power distribution 12 channels 16A power input 8 channels 19pin socket
Type Stage Distribution Box Electrical Box Usage Industrial,Entertainment,Stage,Concert,Live show etc
Size Customized Size Matériel Le PE
Shell Protection Grade IP65 Affichage d'une largeur d'un mètre,
Mettre en évidence

Boîte de distribution de puissance PHLTD à 19 broches

,

Boîte de distribution d'énergie pour équipement professionnel

,

Boîte de distribution électrique à 12 canaux
Laisser un message
Description de produit
Products Description

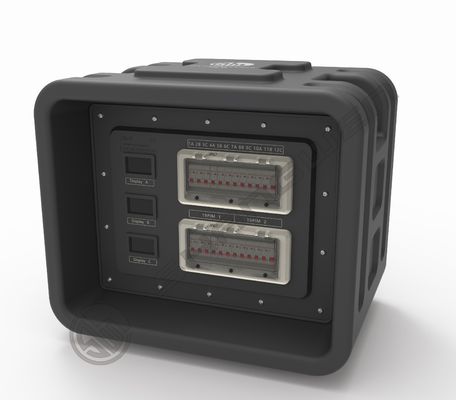

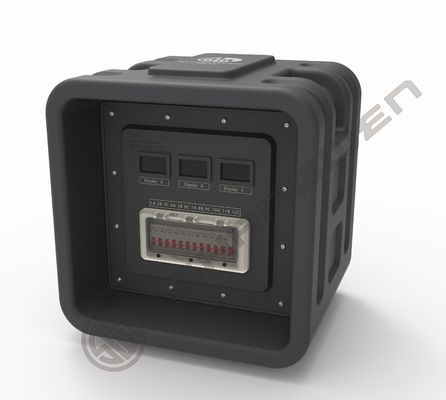

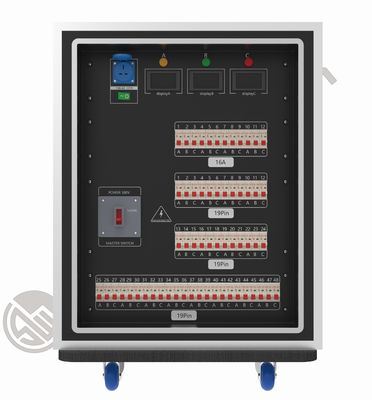

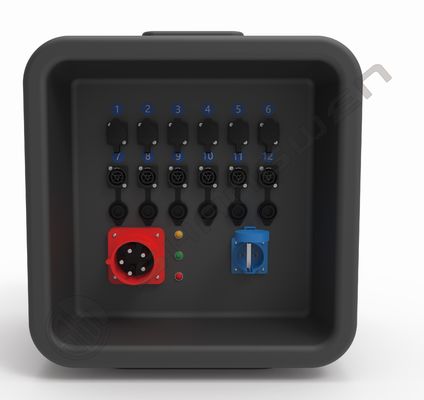

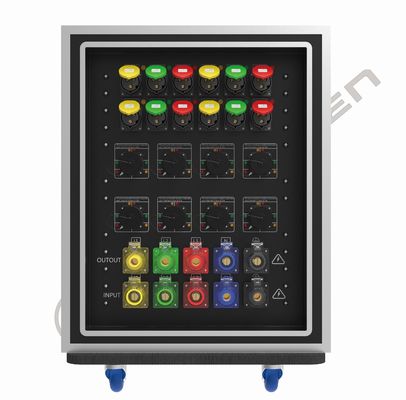

Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box

Good accessories are the guarantee of stability, durability and reliability;
The output socket adopts PHLTD industrial plug, good quality, durable, European standard;
The total input can be matched with the mainstream power box, which is convenient for various mobile performances. 12U flight case with wheels, front and rear door covers, and sides.
The stage distribution box is a device that provides power supply and protection for various stage lighting equipment.
It is used in different types of performances like weddings, outdoor shows, stages, concerts, DJs, etc.
Connect or disconnect circuits by manual or automatic switches, and provide power-off protection or alarms in the event of circuit overload, short circuit, or leakage.It has a rugged and durable housing that can withstand external forces and shocks, while also providing high-quality electrical insulation and high temperature resistance. The installation method is convenient and space-saving, and can be adapted to different circuit configurations and load requirements.
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 0
Model：SW3MWT01
☑ Power supply: 3-phase five-wire
AC380±10%, frequency 50Hz/60Hz±5%
☑ Input current: self-locking 400A
rhinoceros plug; Band reverse
☑ It has three-phase A.B.C direct-reading independent LCD current and voltmeter display, which can monitor various data in real time without switching
☑ Output: 12 channels of 16A+8 channels
of 19 core output, each output with
indicator display
☑Fuselage: Exquisite and durable
double-layer shockproof hexagonal
pattern plate; 14U standard cabinet.
☑ Control system: the main control
adopts 250A total air opening; Each
channel is independently split into C20A,
with double protection of overload and
short circuit
Size reference
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 1

Custom process

Contact seller to know moreabout product type style, specification, size

1 Select the socket style current size and quantity(industrial/Multi functional/Other)

Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 2

2 Choose whether you need a matching plug


Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 3

3 Confirm whether the switch protection mode isequipped with leakage protection


Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 4
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 5

4 According to your configuration, the customer servicewill configure the size and style for you


Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 6
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 7
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 8
Application area
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 9
Company Information
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 10
Patent & Certification
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 11
Exhibition activities
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 12
Packaging reference
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 13
Payment and logistics
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 14
FAQ
Stage Light Power Distribution Box 12 Channels 19-Pin PHLTD Professional Equipment Electrical Power Distribution Box 15
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
