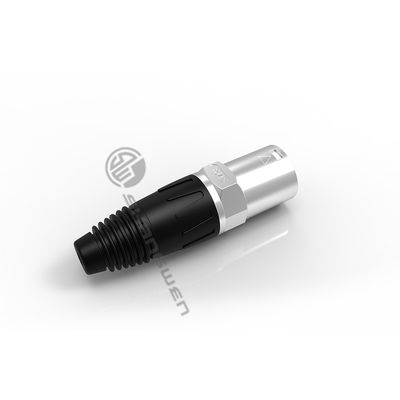

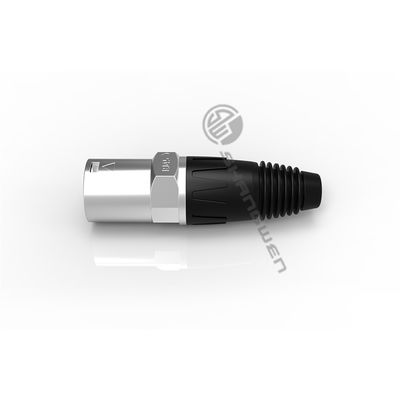

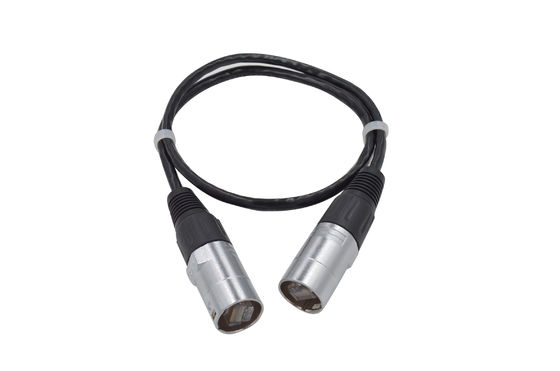

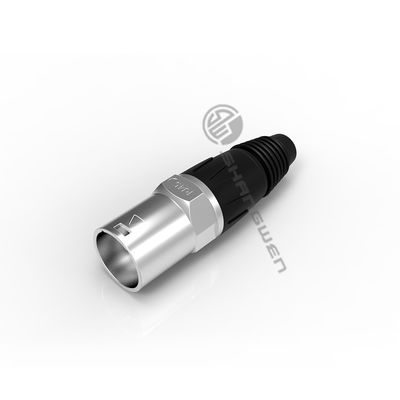

IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors

Lieu d'origine Guangdong, Chine
Nom de marque SHANGWEN
Numéro de modèle SW8MC-A-2N
Quantité de commande min 10 pièces
Prix $0.90-2.90 / piece

Contactez-moi pour des aperçus gratuits et des bons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Niveau IP Résistance à la corrosion Taper Prise RJ45
Application Ethernet Genre Mâle
Électronique industrielle Accessoires
Mettre en évidence

IP44 Indoor Rj45 Connectors

,

Zinc Shell IP44 Indoor Connectors

Laisser un message
Description de produit
Products Description
Signal connector series-RJ45 connector
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 0
Model:SW8MC-A-2Nindoor use)
This RJ45 system is suitable for very demanding environments
This cable jacket can be matched with most RJ45
Cable jacket does not include crystal head
Wire diameter range: 5-7mm
Rugged die-cast housing and unique line clamp lock card
In many commercial applications, protecting Ethernet connections, this design protects components in RJ45 standard connectors
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 2
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 4
1. Mechanical parameters
Service life
>1000 mating cycles
Insertion force
≤20 N
Wiring
5-7mm
Locking device
latch lock
2. Material and environmental parameters
Boot
Polyamide
Shell
Zinc diecast
Shell plating
Black coating
Temperature range
-30℃to +80℃
3. Size reference (unit /mm)
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 6
4. Internal structure reference
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 8

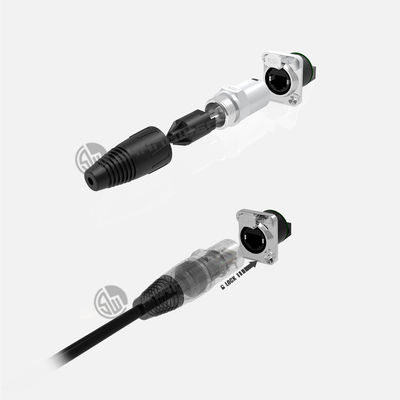

5. Installation instructions with RJ45 socket
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 10
Application area
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 12
Company Information
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 14
Patent & Certification
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 16
Exhibition activities
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 18
Packaging reference
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 20
Payment and logistics
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 22
FAQ
IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors 24
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
