D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45

Lieu d'origine Guangdong, Chine
Nom de marque SHANGWEN
Numéro de modèle SW8FD-NGH
Quantité de commande min 10 pièces
Prix $2 / piece

Contactez-moi pour des aperçus gratuits et des bons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Courant nominal 1.5a Niveau IP Résistance à la corrosion
Taper Socket RJ45 Application Ethernet
Genre Femelle Électronique industrielle Accessoires
Durée de vie > 1000 fois
Mettre en évidence

RJ-45 Chassis Connector

,

RJ45 Chassis Connector

,

LED D-Shape Panel Mount Connector

Laisser un message
Description de produit
Products Description

Signal connector series-RJ45 connector

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.

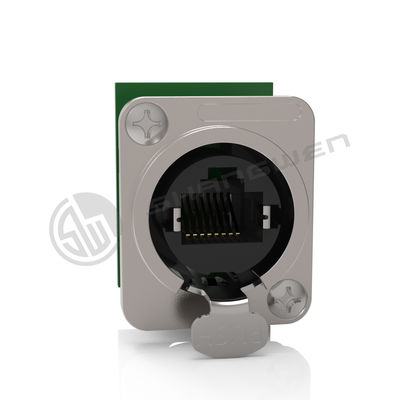

D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 0
Model:SW8FD-NGH(indoor use)
D-shape panel connector with uniform metal flange and standard D-style installation size
Install from the rear of the panel
The rear end is a feedthrough RJ45
Mountable from the front or rear of the panel Complies with CAT 5e according to TIA/EIA568B and ISO/IEC11801 standard

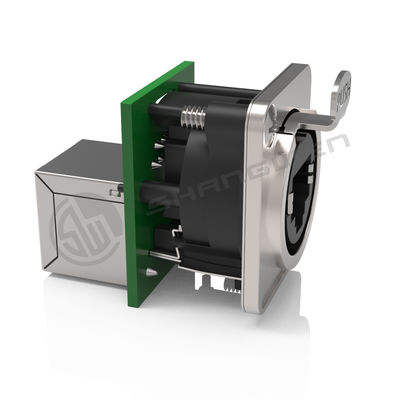

D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 2

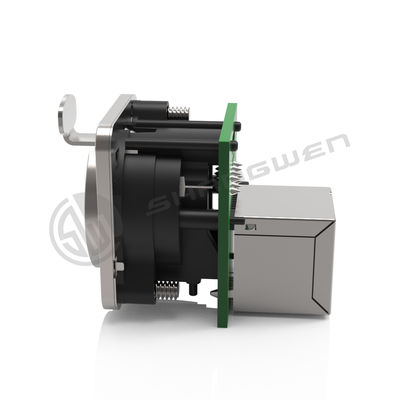

D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 4

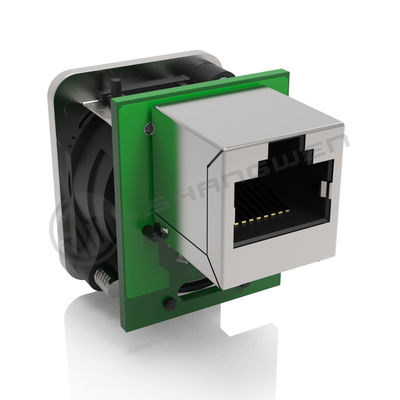

D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 6
1. Electrical parameters
Contact resistance
<10mΩ
Rated current
1.5 A
Rated voltage
50 V
Insulation resistance
≥0.5GΩ
Dielectric strength
1KV DC
Frequencyrange
1-100 MHz
Transmission performance
CAT 5e
2. Mechanical parameters
Service life
>1000 mating cycles
Insertion force
≤ 20 N
Locking device
latch lock
Chassis shape
D style
3. Material and environmental parameters
Shell
Zinc diecast
Contacts
Bronze
Insert
PBT
Contact surface
Au
Shell surface
Ni
Temperature range
-30℃to +80℃
4. Standard
Standard
TIA/EIA586B,IEC11801
4.Size reference (unit /mm)
D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 8
5.Internal structure reference
D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 10
6. Installation instructions with SW8MC-A plugs
D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 12
Application area
D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 14
Company Information
D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 16
Patent & Certification
D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 18
Exhibition activities
D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 20
Packaging reference
D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 22
Payment and logistics
D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 24
FAQ
D-Shape Panel Mount Ethercon Ethernet RJ-45 Chassis Connector Indoor Cat 5e 8P Pins LED Application Network Signal D-RJ45 26
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
